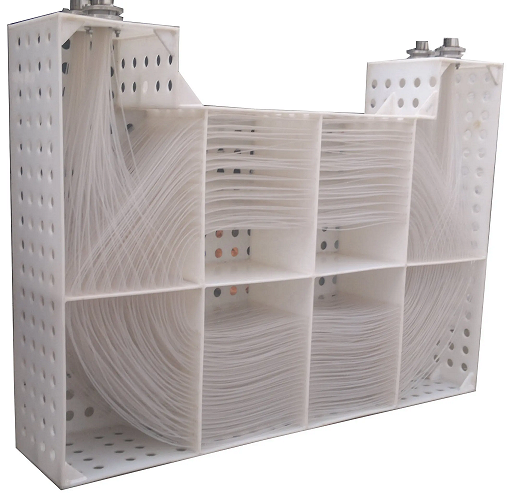

SUPERIOR CHEMICAL RESISTANCE: For heating or cooling of most aqueous acid and alkaline solutions. Check solution guide or consult with your chemical supplier for proper sheath material selection.
RUGGED CONSTRUCTION:
• | All wetted parts of fluoropolymer (FEP, PFA or PTFE) construction. |
• | Heavy duty CPVC mounting bracket. |
• | 1/8-inch thick perforated guard helps protect the coil from damage. |
OUTSTANDING PERFORMANCE: Heavy wall tubing improves circulation and minimizes pressure drop. Larger coils constructed of ?inch (13 mm) tubing, smaller coils have ?inch (7 mm) tubing.
LEAK FREE OPERATION: Integral inlet and outlet manifolds for single point connections greatly reduce the potential for leaks and simplify installation.
PRESSURE RATING:
• | Standard coils are made from FEP (Fluorinated Ethylene Propylene) and rated up to 30 PSI steam service. |
• | PFA (Perfluoroakoxy resin) coils are available for steam service up to 60 PSI. |
• | 10 PSI minimum steam pressure required for operation. |
• | Consult factory regarding pressure reduced applications. |
NON-CONDUCTIVE: Eliminates stray currents in the tank.
SIZES: 2.25 square foot to 46.5 square foot of exchange area standard.
OPTIONS AVAILABLE (consult factory):
• | Anti-floatation brackets. |
• | Special sizes. |
• | Special manifold configurations. |
• | L-shaped configurations for bottom heat applications. |
• | Dual coils for both heating and cooling. |
NOTE: Vacuum breakers recommended for fluoropolymer heat exchanger steam heating installations. Please consult factory regarding pressure reduced steam applications
